Bekomat Automatic Drain Devices
Electronically level-controlled condensate drainage has become synonymous with efficient condensate discharge. With intelligent electronics that are volume-controlled and pressure-resistant, it minimizes energy consumption and costs by preventing unnecessary losses. This is not only our opinion but also shared by many renowned compressor manufacturers who recommend BEKOMAT as the safest and most economical condensate drain unit currently available on the market.
Condensate drainage requirements are ultimately determined by the intended use of the processed compressed air. We aim to offer optimized solutions tailored to our customers’ specific applications. With our comprehensive range of condensate drain systems, we serve virtually all compressor types and performance levels, system pressures, and operating conditions—including highly specialized applications.
Bekomat Functions
BEKOMAT discharges condensate without compressed air loss, reducing energy costs and CO₂ emissions. This is made possible by its integrated capacitive sensor, intelligent electronics for volume-controlled condensate discharge, and a proven pilot-controlled solenoid valve with a special discharge diaphragm.
The BEKOMAT series offers not only the right solution for nearly every application but also the most energy-efficient option, including standard units 12, 13, 14, and 16. The integrated capacitive sensor for volume-controlled condensate discharge contributes to energy savings and increases efficiency—just what you expect from BEKOMAT.

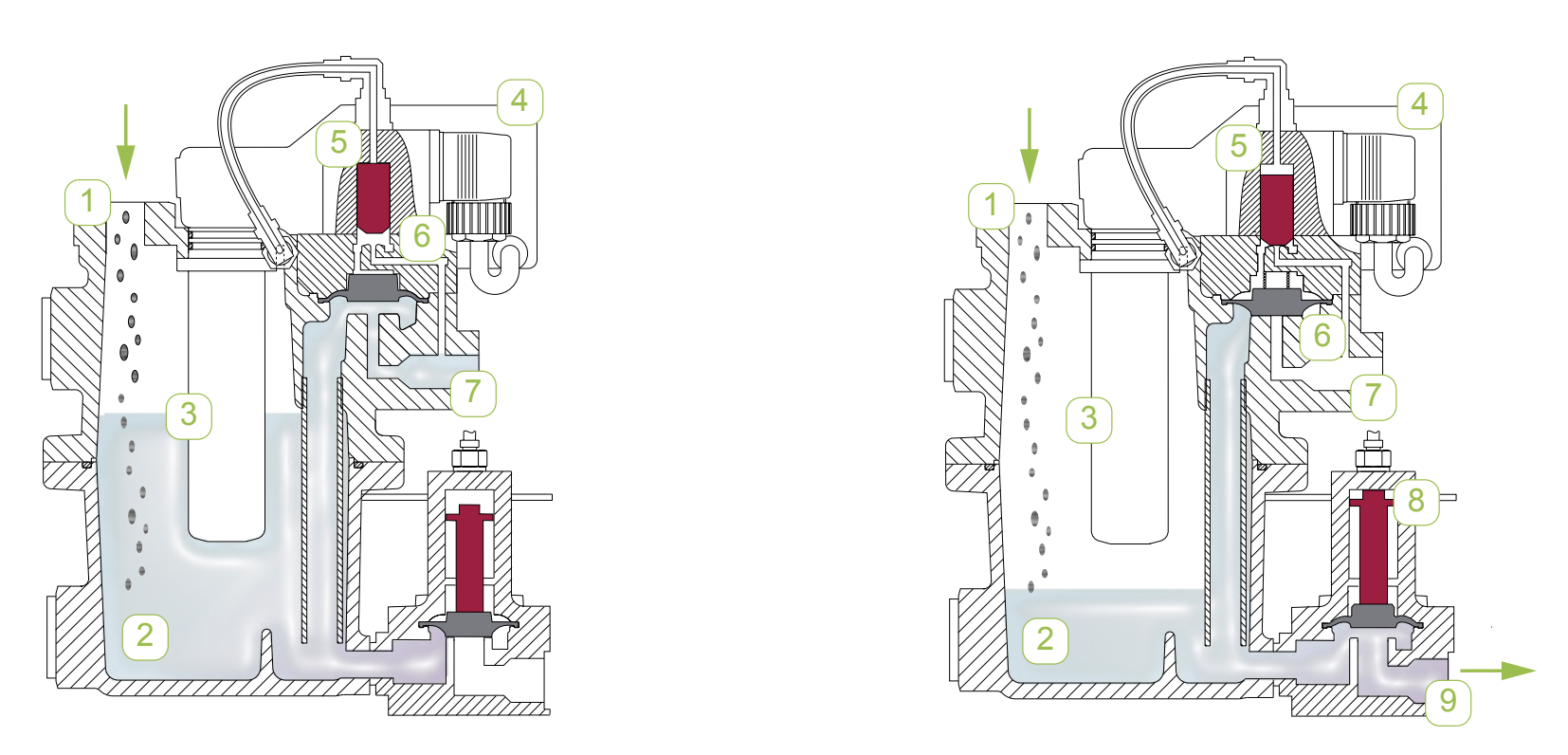

Unnecessary costs and damage in compressed air generation can only be effectively prevented with volume-controlled condensate discharge. That’s why BEKOMAT uses a capacitive sensor to operate its condensate drain. Intelligent electronics prevent compressed air losses and minimize energy consumption. As a result, electronically controlled condensate drainage typically pays for itself within six months compared to devices with timer-controlled drain valves.

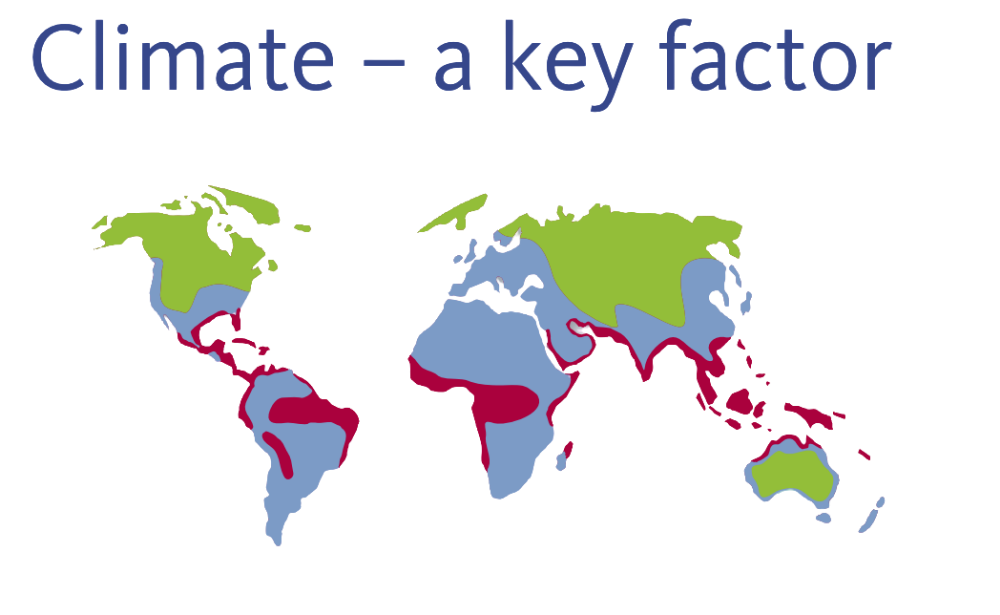

Depending on climate and temperature conditions, varying amounts of condensate (condensation water) may form.
For this reason, the performance values for BEKOMAT® models are specified based on three different climate zones:
• GREEN ZONE: Northern Europe, Canada, Northern USA, Central Asia
• BLUE ZONE: Central and Southern Europe, Central America
• RED ZONE: Coastal regions of Southeast Asia, Oceania, Amazon and Congo basins
Operating temperature range: +1 °C to +60 °C
- Bekomat® 03/06 / LA / LALP
- Bekomat® 03/06 VAC
- Bekomat® 08/09
- Bekomat® 12/13/14/16
- Bekomat® 20 / 20 FM
- Bekomat® i4.0
- Bekomat® 31/33
- Bekomat® Maintenance Kit

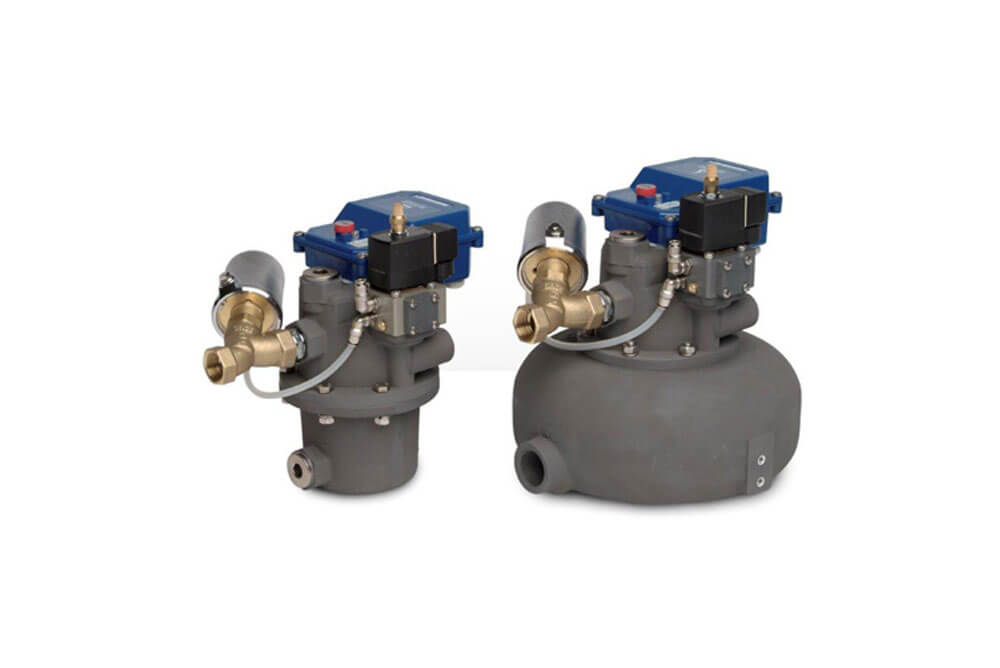

Bekomat® 03/06 / LA / LALP
If the compressor operating pressure drops below 0.8 bar (for example, during idling in multi-stage compressors), an additional valve does not open. The condensate can then drain without pressure. When the operating pressure exceeds 0.8 bar again, the drain valve closes and the BEKOMAT operates in standard mode.
The LP version is specifically designed for operating pressures that can drop as low as 0.4 bar. High-pressure versions are available for operating pressures up to PN 25 and/or PN 63 bar.
Catalog
Bekomat® 03/06 / LA / LALP Automatic Water Drain Device
Learn more about the Bekomat® 03/06 / LA / LALP automatic water drain device.
Bekomat® 03/06 / LA / LALP
The Bekomat® 03/06 / LA / LALP is a highly energy-efficient and reliable automatic drain device designed for condensate discharge in compressed air systems. Thanks to its advanced electronic sensor technology, it drains only when necessary, preventing energy loss and enhancing system efficiency. With its compact design and easy installation features, Bekomat® adapts to various systems and offers long-lasting performance with minimal maintenance requirements.
• Compressors: A reliable solution for effective condensate drainage.
• Air Tanks: Ideal for draining water accumulated from stored air.
• Dryers and Filters: Can be used to remove moisture from the air.
• Industrial Facilities: Delivers high performance in large-scale applications requiring precise drainage.
• Low Pressure Systems (LALP models): Specifically designed for low-pressure systems, offering superior results in such applications.
The Bekomat® 03/06 / LA / LALP is an ideal solution for businesses seeking energy savings and high efficiency. It offers suitable options for systems of various capacities and helps reduce operating costs.

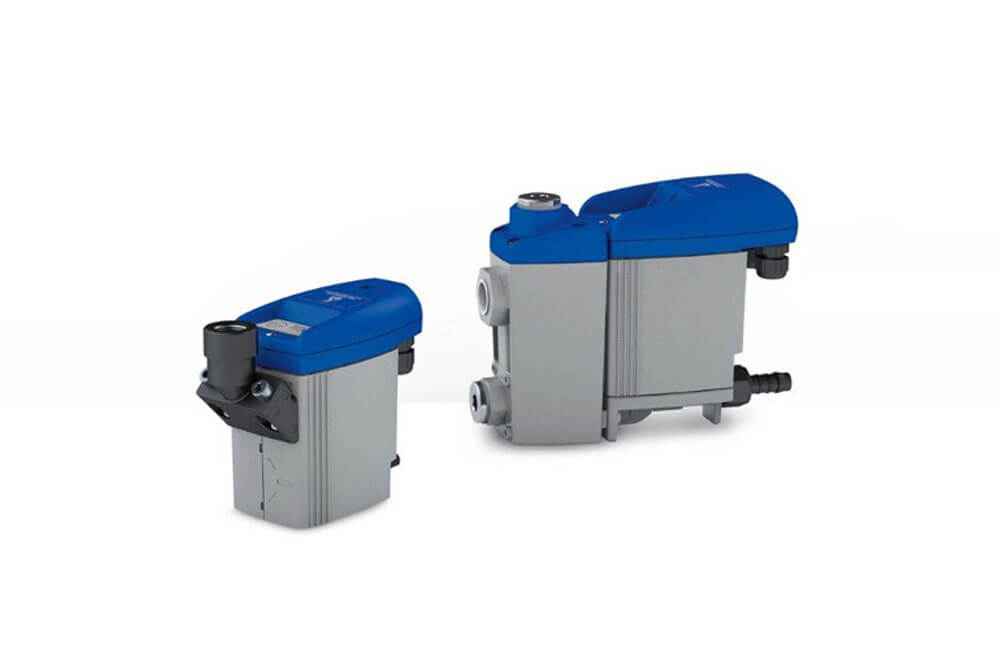

Bekomat® 03/06 VAC
The Bekomat® VAC condensate drain is specifically designed to discharge condensate and other media from negative pressure and vacuum systems operating at 0.1 - 1.8 bar (absolute) operating pressure. It is also suitable for processes conducted under normal atmospheric conditions. To meet your specific requirements, the robust, volume-controlled condensate drain is available in a hard-coated version or manufactured in stainless steel.
Catalog
Bekomat® 03/06 VAC Automatic Water Drain Device
Learn more about the Bekomat® 03/06 VAC automatic water drain device.
Bekomat® 03/06 VAC
The Bekomat® 03/06 VAC is an automatic drain device specifically designed for the effective discharge of condensate accumulated in vacuum systems. Equipped with advanced electronic control technology capable of operating under vacuum conditions, this model enhances system reliability and efficiency. It saves energy and reduces operating costs by draining only when necessary. Its compact and durable design allows easy integration into various applications.
• Vacuum Systems: An ideal solution for the safe discharge of water and condensate accumulated in vacuum environments.
• Centrifugal Vacuum Pumps: Used to ensure efficient operation of vacuum pumps.
• Chemical and Pharmaceutical Industry: Preferred for condensate drainage in sensitive vacuum processes.
• Food and Beverage Industry: Effective in safely draining moisture and liquids accumulated in vacuum-operated systems.
• Other Industrial Vacuum Applications: A reliable solution for low-pressure and sensitive vacuum environments.
The Bekomat® 03/06 VAC is designed to meet the specific needs of vacuum systems, contributing to their long-lasting and efficient operation. With energy-saving and superior performance features, it is a dependable choice for industrial vacuum applications.

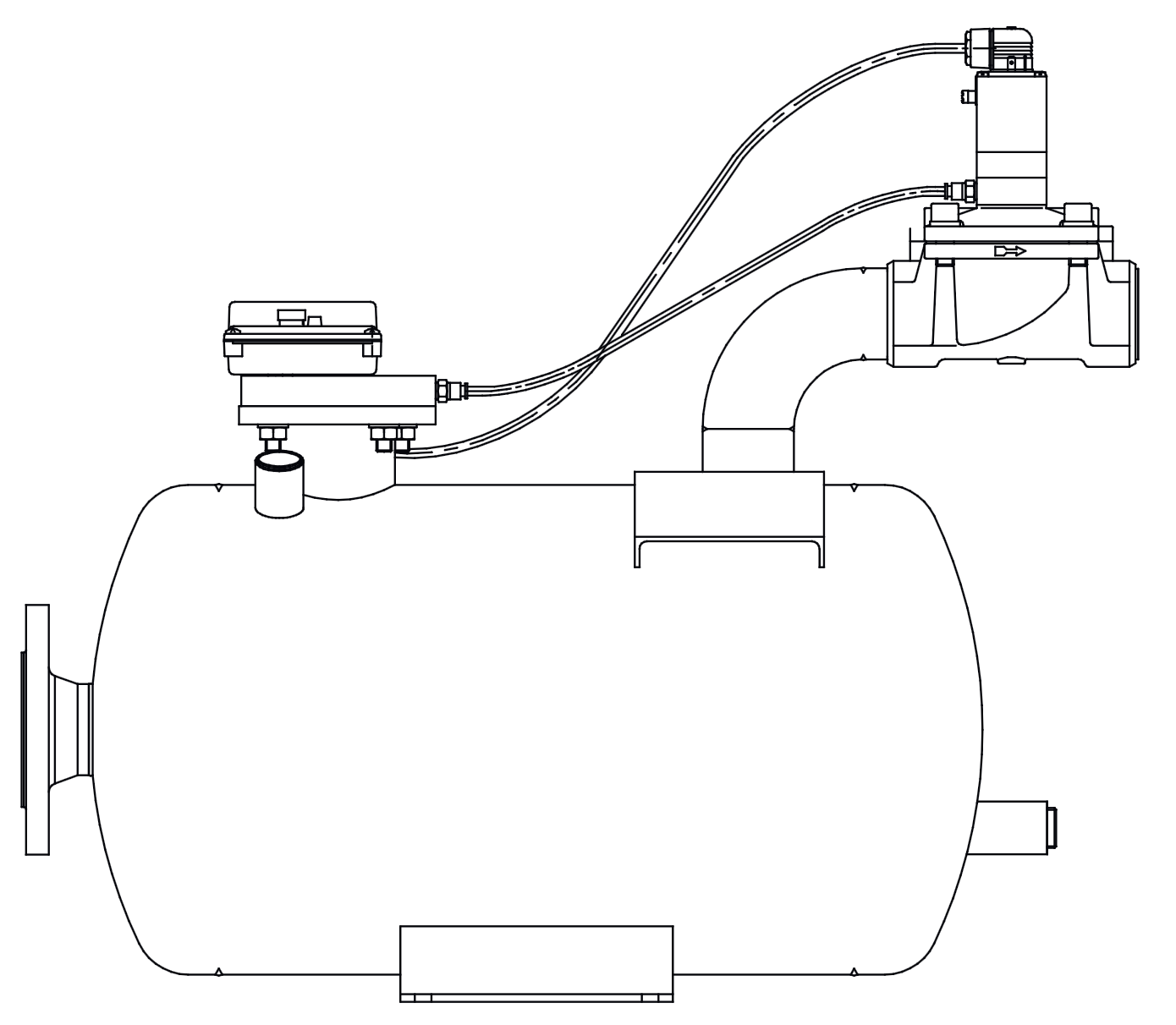

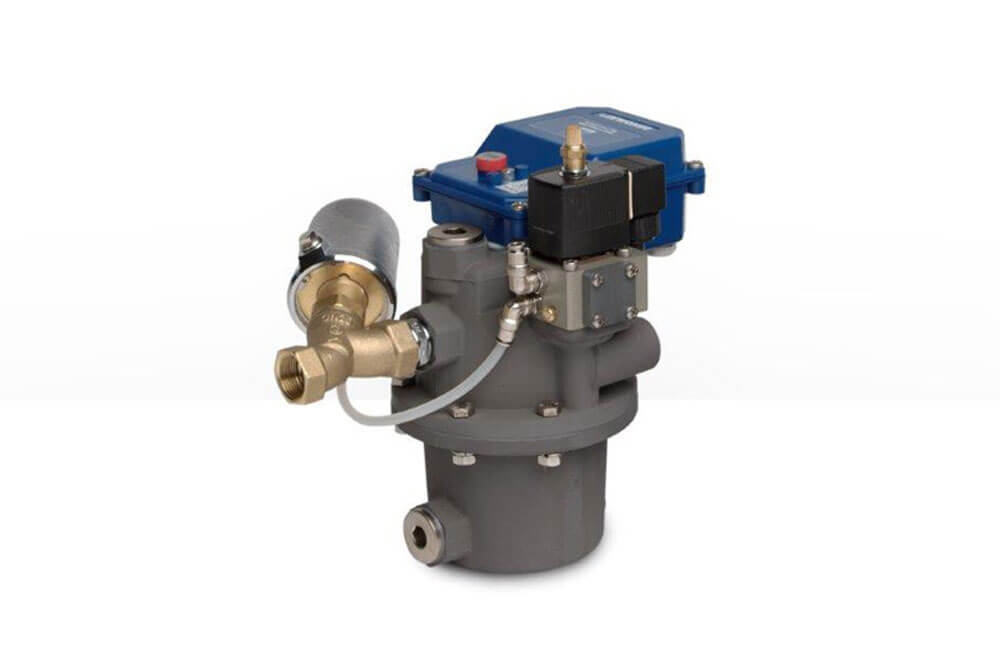

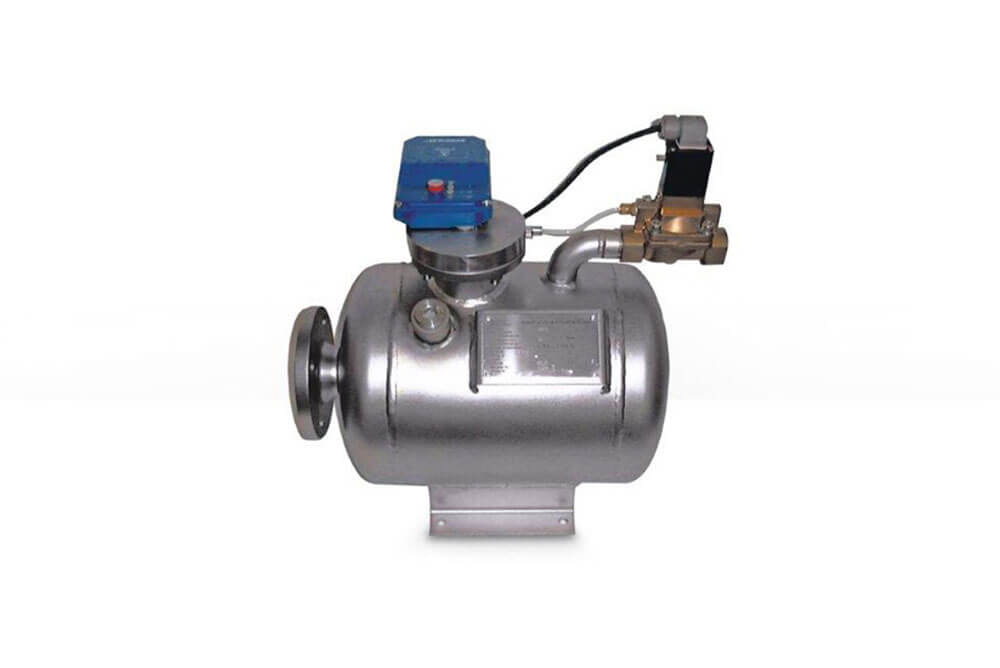

Bekomat® 08/09
This BEKOMAT condensate drain features a fully stainless steel housing, making it suitable for aggressive environments and specifically designed for the discharge of condensate from special gas compression. It is commonly used in oil plants and refineries, the petrochemical industry, and crude or mineral oil facilities. These are the largest electronically controlled condensate drainage systems available on the market, specially designed and manufactured to meet these demanding requirements.
Catalog
Bekomat® 08/09 Automatic Water Drain Device
Learn more about the Bekomat® 08/09 automatic water drain device.
Bekomat® 08/09
The Bekomat® 08/09 is a high-performance automatic drain device specially developed for compressed air and condensate management systems with large capacity. Its advanced electronic level sensor prevents energy loss by draining only when necessary, enhancing system efficiency. The robust and durable design ensures reliable performance even under harsh industrial conditions. With its large discharge capacity, it is an effective solution for systems with high condensate formation.
• Large Compressors: Ideal for effectively draining high volumes of condensate.
• Industrial Air Systems: Provides reliable drainage in intensive compressed air applications.
• Dryers and Filters: Used in large-scale moisture removal applications.
• Power Plants: Suitable for condensate drainage in systems meeting continuous and intensive compressed air demands.
• Petrochemical and Heavy Industry: Preferred in these sectors for its durable design that withstands harsh operating conditions.
The Bekomat® 08/09 is a solution specifically developed for large-scale systems with intensive condensate formation. It enhances operational efficiency and reduces maintenance costs with its energy-saving capabilities, high performance, and long-lasting construction.

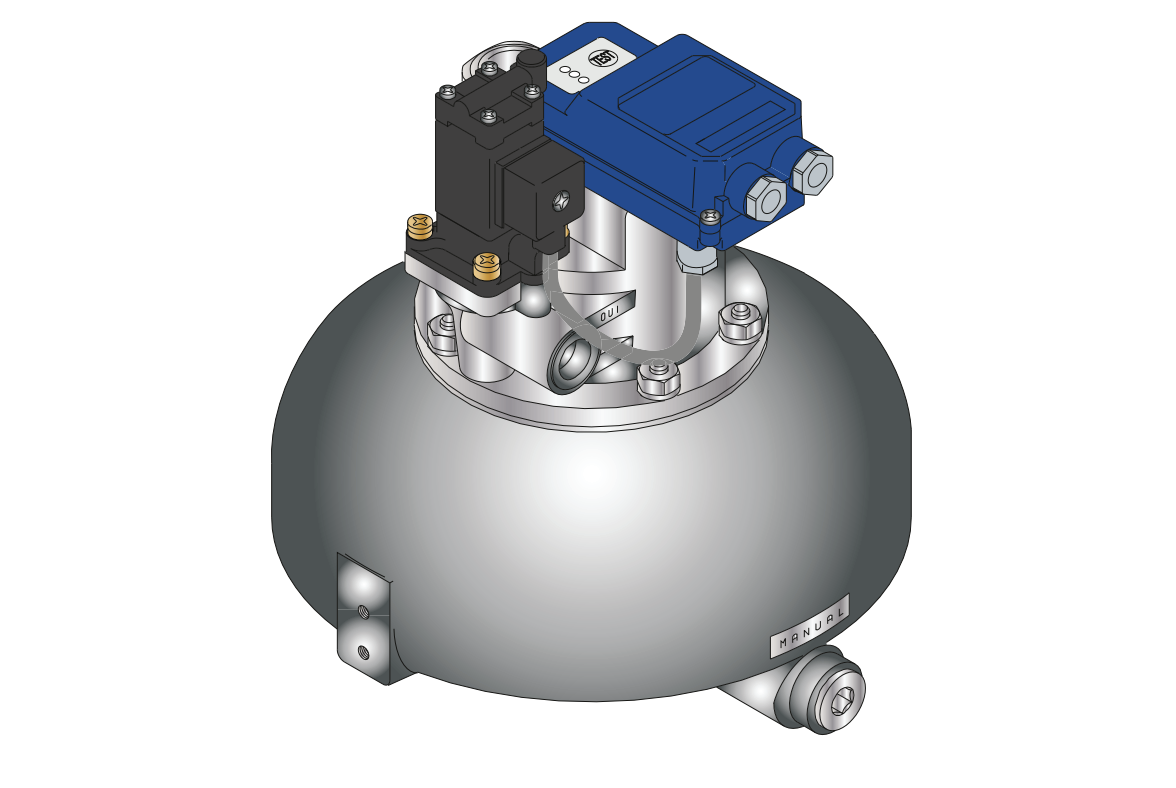

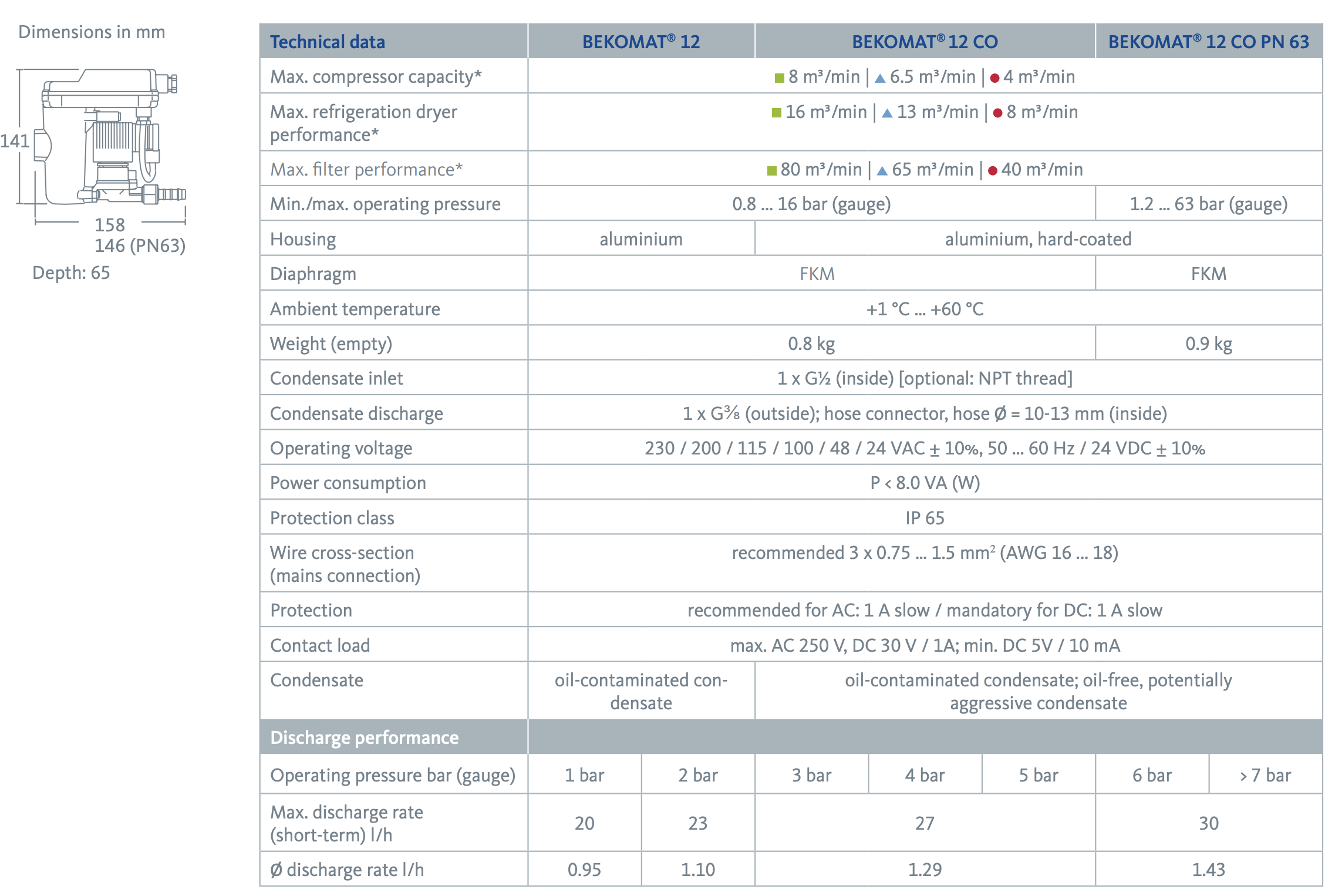

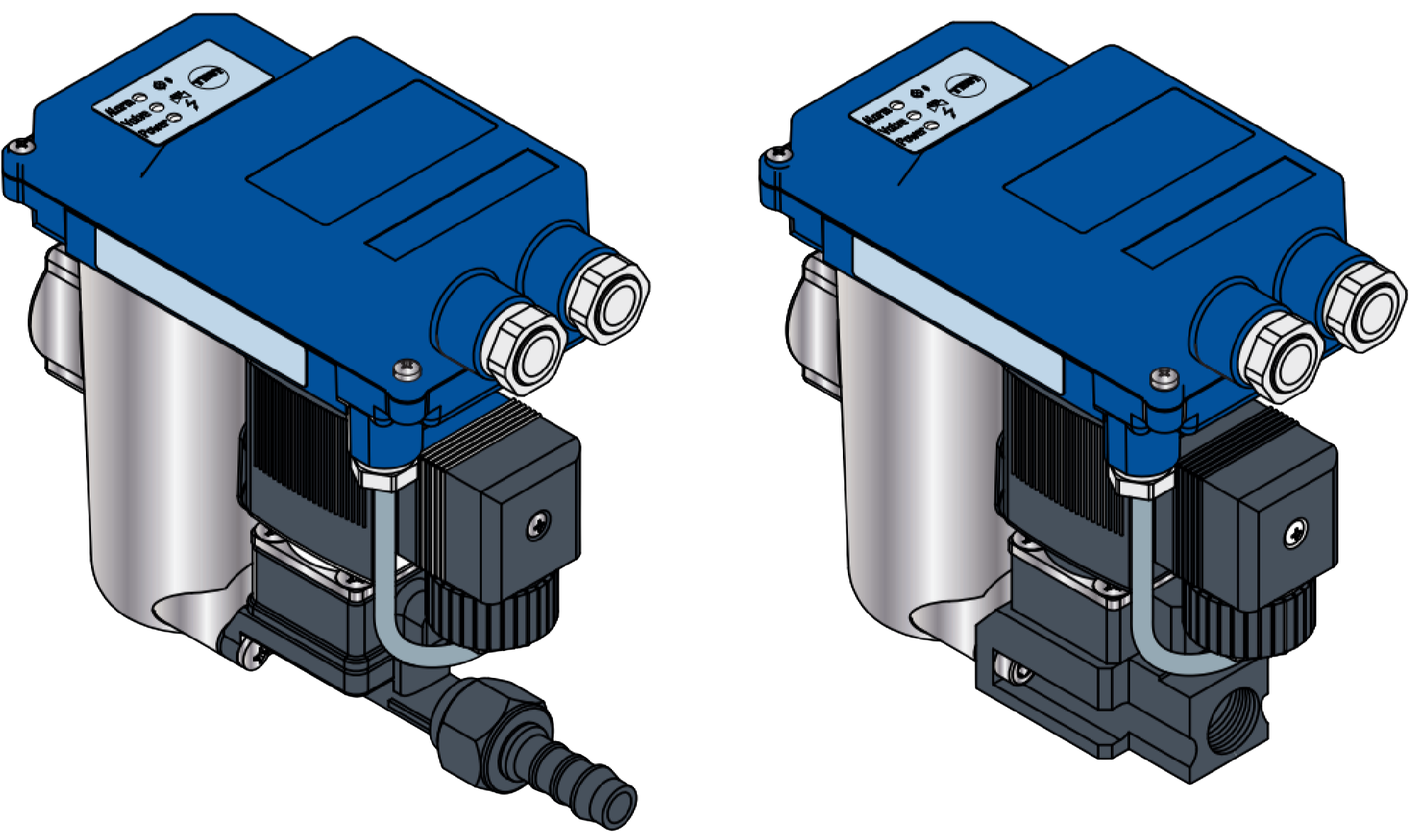

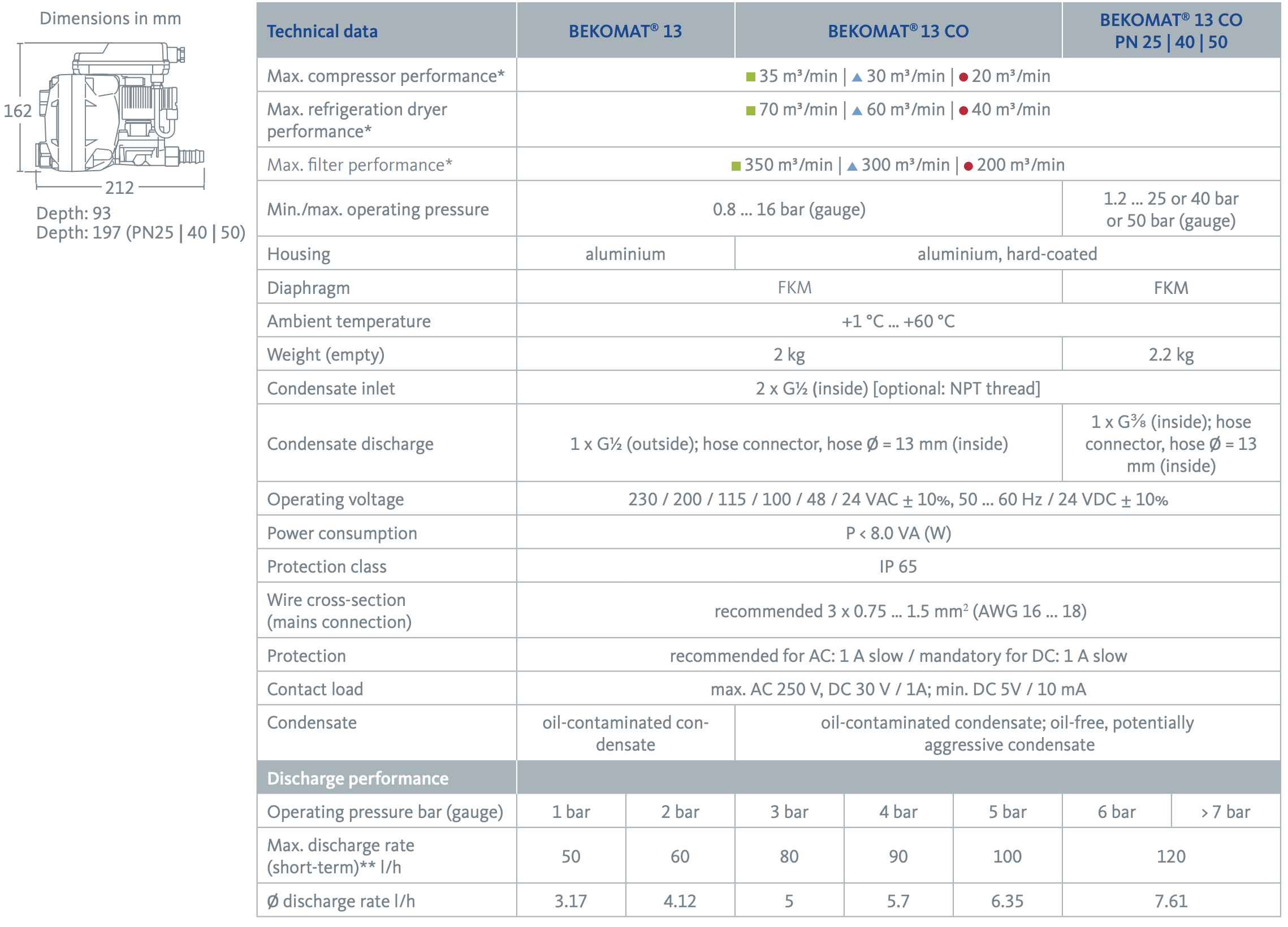

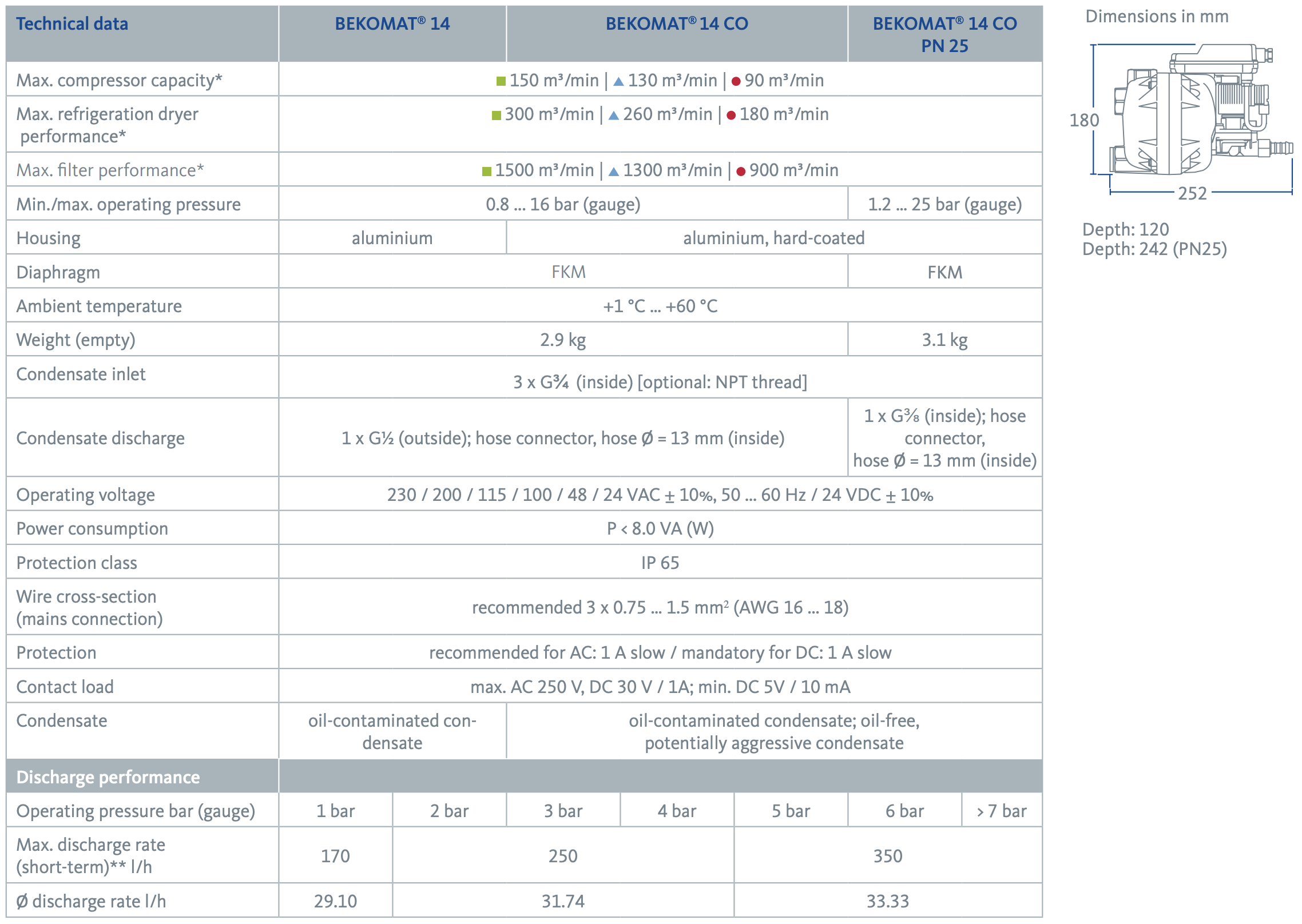

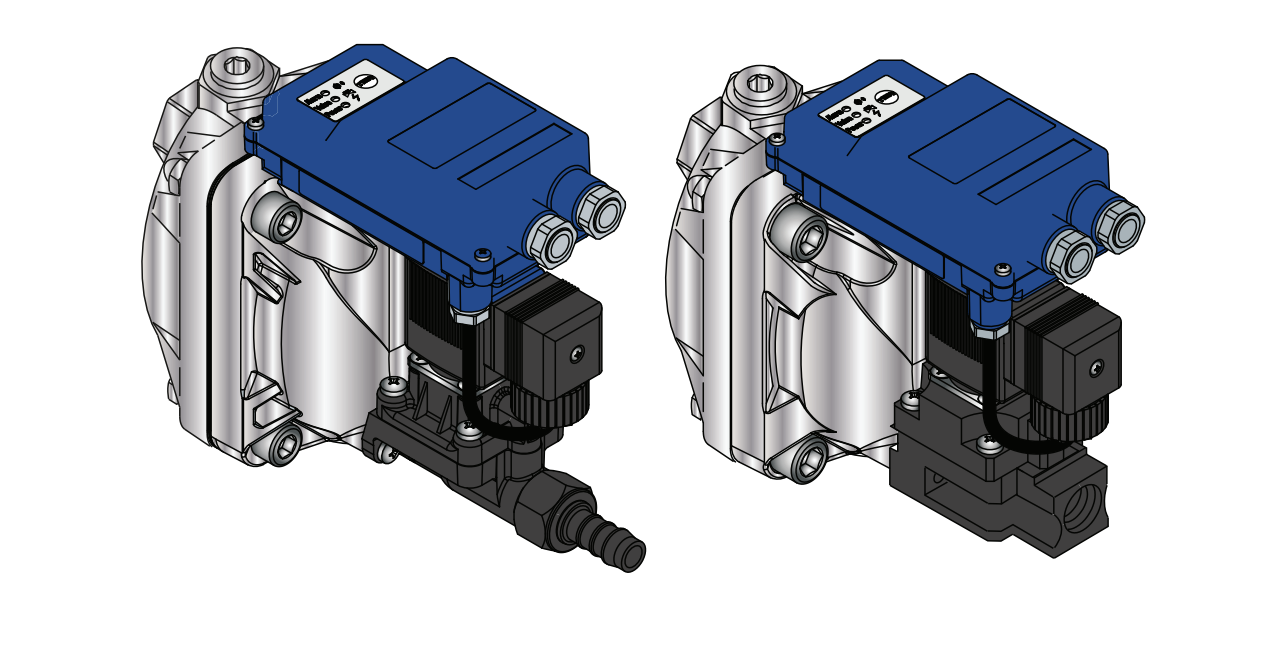

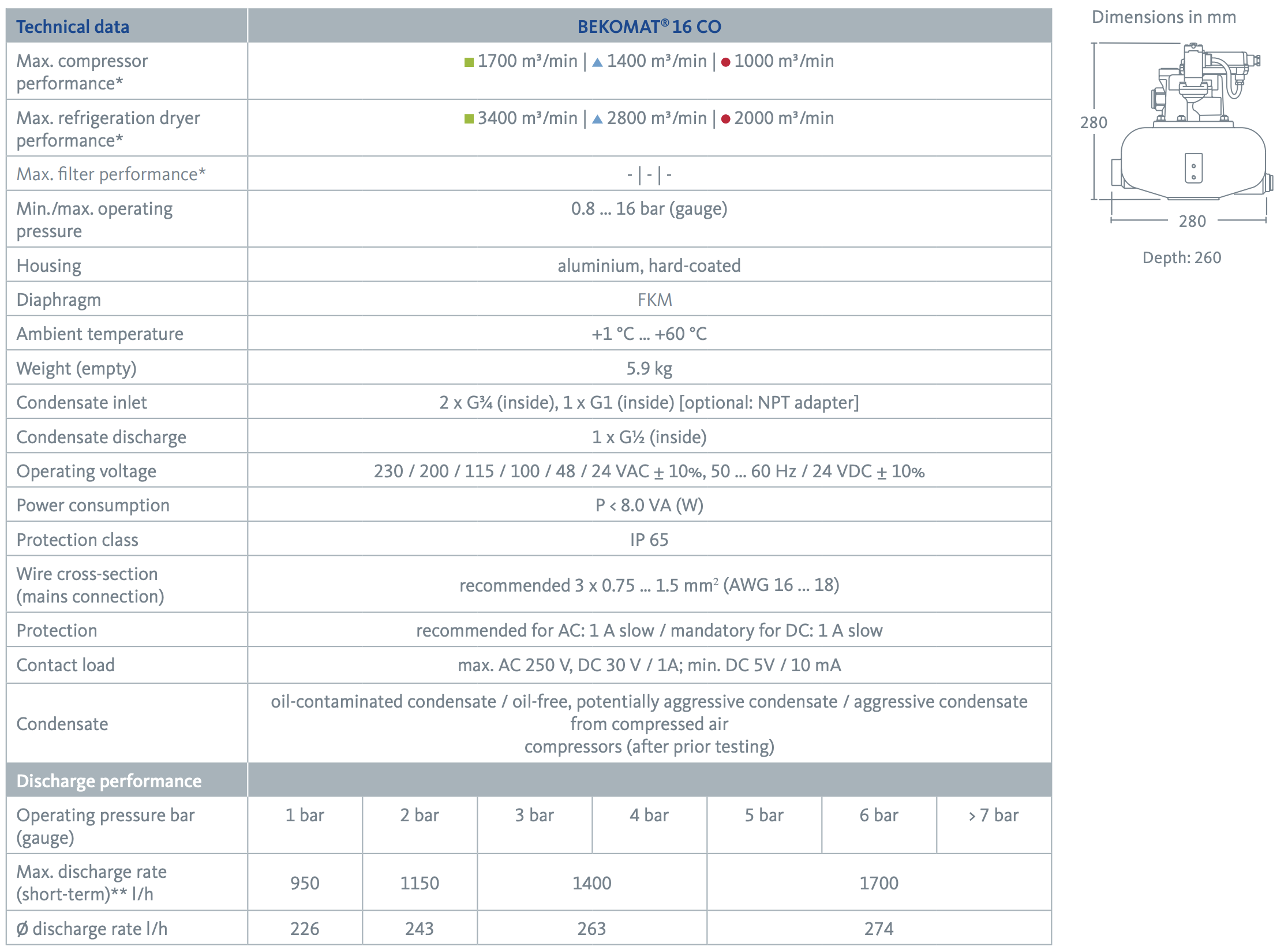

Bekomat® 12/13/14/16
The BEKOMAT series not only provides the right solution for nearly every application but also offers the most energy-efficient option with standard units 12, 13, 14, and 16. Its water level sensor operating principle helps save energy and increase efficiency—just what you expect from BEKOMAT.
Unnecessary costs and damage in compressed air production can be effectively prevented only with water level sensor-controlled drainage. That’s why BEKOMAT condensate drains operate with a capacitive sensor. Intelligent electronics prevent compressed air losses and minimize energy consumption. Due to this electronically regulated condensate drainage, the system typically pays for itself within six months compared to devices with time-controlled drain valves.
Bekomat® 12/13/14/16 Automatic Water Drain Device
Learn more about the Bekomat® 12/13/14/16 automatic water drain device.
Bekomat® 12/16
The Bekomat® 12/16 is a reliable and durable automatic drain device specifically designed for industrial-scale systems with high condensate discharge capacity. Thanks to its advanced electronic control mechanism and high-precision sensors, it provides energy savings by draining only when necessary, thereby enhancing the efficiency of compressed air systems. Built to withstand harsh industrial conditions, it offers long-lasting use and minimizes maintenance requirements.
• Industrial Compressor Systems: Provides an effective solution for large-scale systems with high condensate formation.
• Dryers and Filters: Ensures reliable performance in moisture removal applications requiring large capacity.
• Petrochemical Industry: Stands out for its durability in harsh working environments.
• Power Plants: Suitable for continuous and high-intensity compressed air applications.
• Metallurgy and Heavy Industry: Preferred in demanding industrial processes requiring large condensate discharge.
The Bekomat® 12/16 is designed to meet high capacity requirements and excels with energy savings, robustness, and high performance. It is an ideal solution to ensure the smooth operation of compressed air systems in large-scale enterprises.

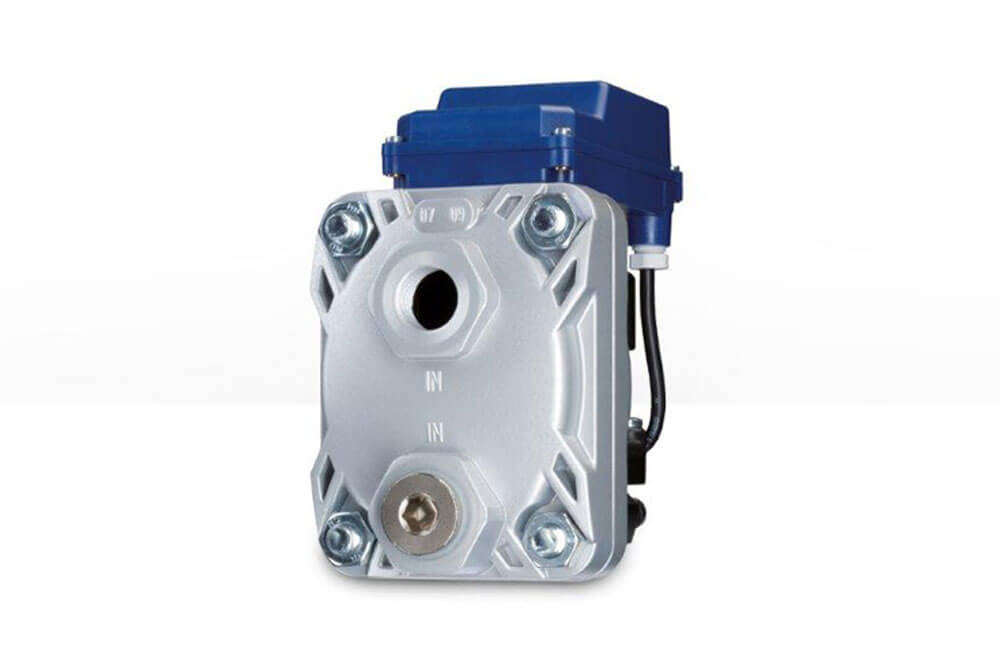

Bekomat® 20 / 20 FM
The BEKOMAT 20 FM with integrated filter management (filter condition time indicator and filter status monitoring) is a cost-effective monitoring solution for the connected filter element. Designed as a robust condensate drain for water separators, filters, or similar applications, it can be used in both oil-lubricated and oil-free compressor systems. The BEKOMAT 20 FM features a plastic housing equipped with an internal aluminum condensate container. The front panel is visible and operable from both the top and front.
Bekomat® 20 / 20 FM Automatic Water Drain Device
Learn more about the Bekomat® 20 / 20 FM automatic water drain device.
Bekomat® 20
The Bekomat® 20 is a heavy-duty automatic drain device designed for ultra-high-capacity compressed air systems. Developed to ensure effective and reliable condensate discharge, this device is especially used in large-scale and intensive industrial applications. Its robust design, high durability, and ease of maintenance contribute to energy savings and reduced operating costs. With its wide discharge capacity, the Bekomat® 20 easily manages large condensate accumulations.
• Petrochemical Plants: Provides a reliable solution for systems requiring high-volume condensate discharge.
• Power Plants: Ideal for supporting intensive compressed air demands.
• Heavy Industry Applications: Delivers effective performance in large-scale compressed air systems.
• Metal and Steel Manufacturing Facilities: Preferred in production processes with high condensate density.
• Dryers and Storage Tanks: Designed for applications requiring large volumes.
With its high capacity and durable construction, the Bekomat® 20 is an excellent solution for large-scale industrial projects. Its long-lasting design, energy-saving features, and efficiency focus increase productivity while minimizing maintenance costs.

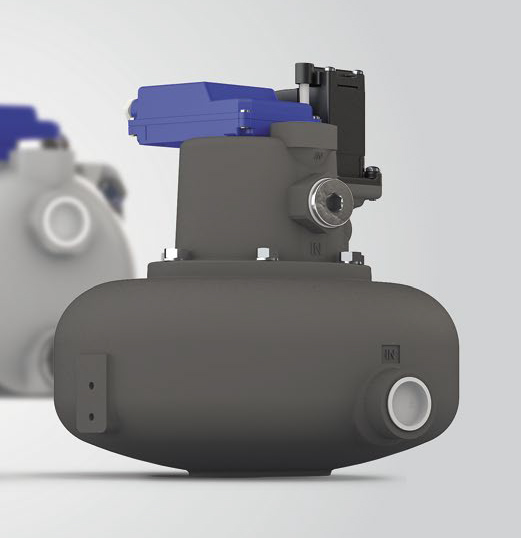

Bekomat® i4.0
The BEKOMAT i4.0 revolutionizes industrial compressed air systems by combining proven condensate drainage technology with digitalization. This innovative device reliably discharges oily and dirty condensate without compressed air loss and can communicate with control systems and control rooms. Thus, the BEKOMAT i4.0 meets the industry’s expectations for smart systems: network connectivity, remote monitoring, and flexibility.
Bekomat® i4.0 Automatic Water Drain Device
Learn more about the Bekomat® i4.0 automatic water drain device.
BEKOMAT i4.0 – Intelligent and Reliable Condensate Drainage
Wherever compressed air systems are present, condensate containing oil and dirt particles forms and spreads into the air line. Therefore, condensate drainage is one of the most critical elements of compressed air treatment. With BEKO TECHNOLOGIES products, we help you remove condensate reliably and efficiently.
With millions of units in use worldwide, BEKOMAT is a proven solution known for its reliability and efficiency. Thanks to its electronic level control mechanism, it drains condensate without any compressed air loss. Designed to meet modern industrial requirements, BEKOMAT integrates with smart automation systems to provide efficient energy management.
BEKOMAT i4.0 provides reliable condensate drainage in industrial processes across a wide range of applications. Here are some of its usage areas:
• Compressors: A reliable solution for effective condensate drainage.
• Air Tanks: Ideal for draining water accumulated from stored air.
• Dryers and Filters: Can be used to remove moisture from the air.
• Industrial Facilities: Delivers high performance in large-scale applications requiring precise drainage.
• Low Pressure Systems (LALP models): Specifically designed for low-pressure systems, offering superior results in such applications.
• Petrochemical and Chemical Industry: Provides reliable drainage in aggressive environments and enhances process safety.
• Food and Pharmaceutical Industry: Used in sensitive production processes requiring clean and dry air.
• Automotive Industry: Drains condensate to ensure uninterrupted air flow on production lines.
• Precision Manufacturing and CNC Machines: Removes condensate to extend machine life and maintain production accuracy.
• Power Plants: Supports efficient operation of air systems in power generation processes.
With energy efficiency and smart control systems, BEKOMAT i4.0 offers a reliable and economical solution across various industries. It helps reduce operating costs by providing suitable options for systems of different capacities.

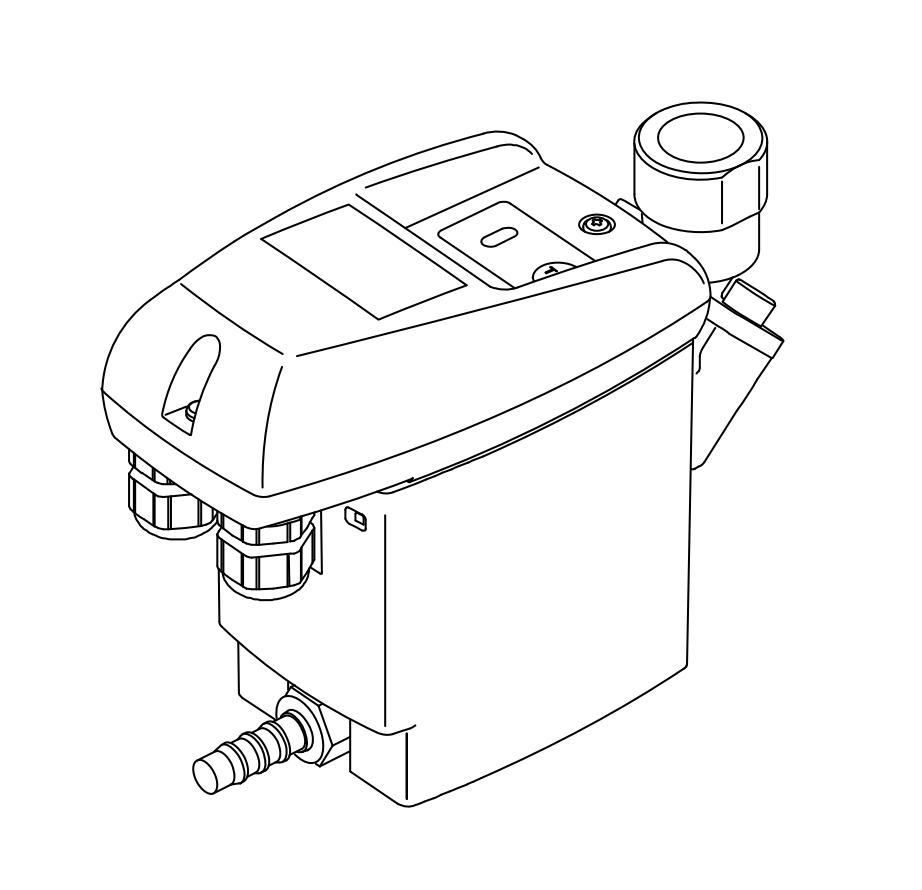

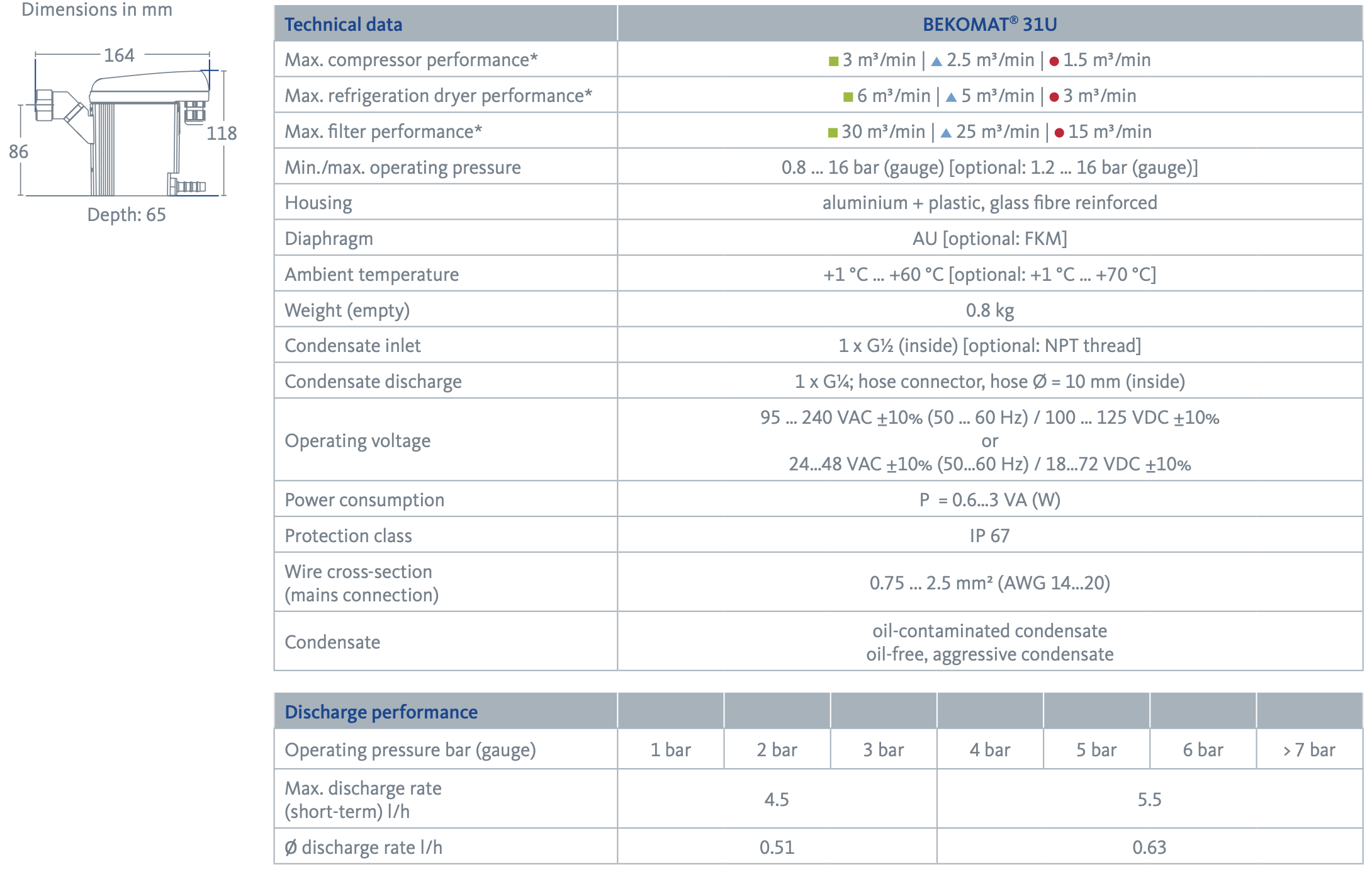

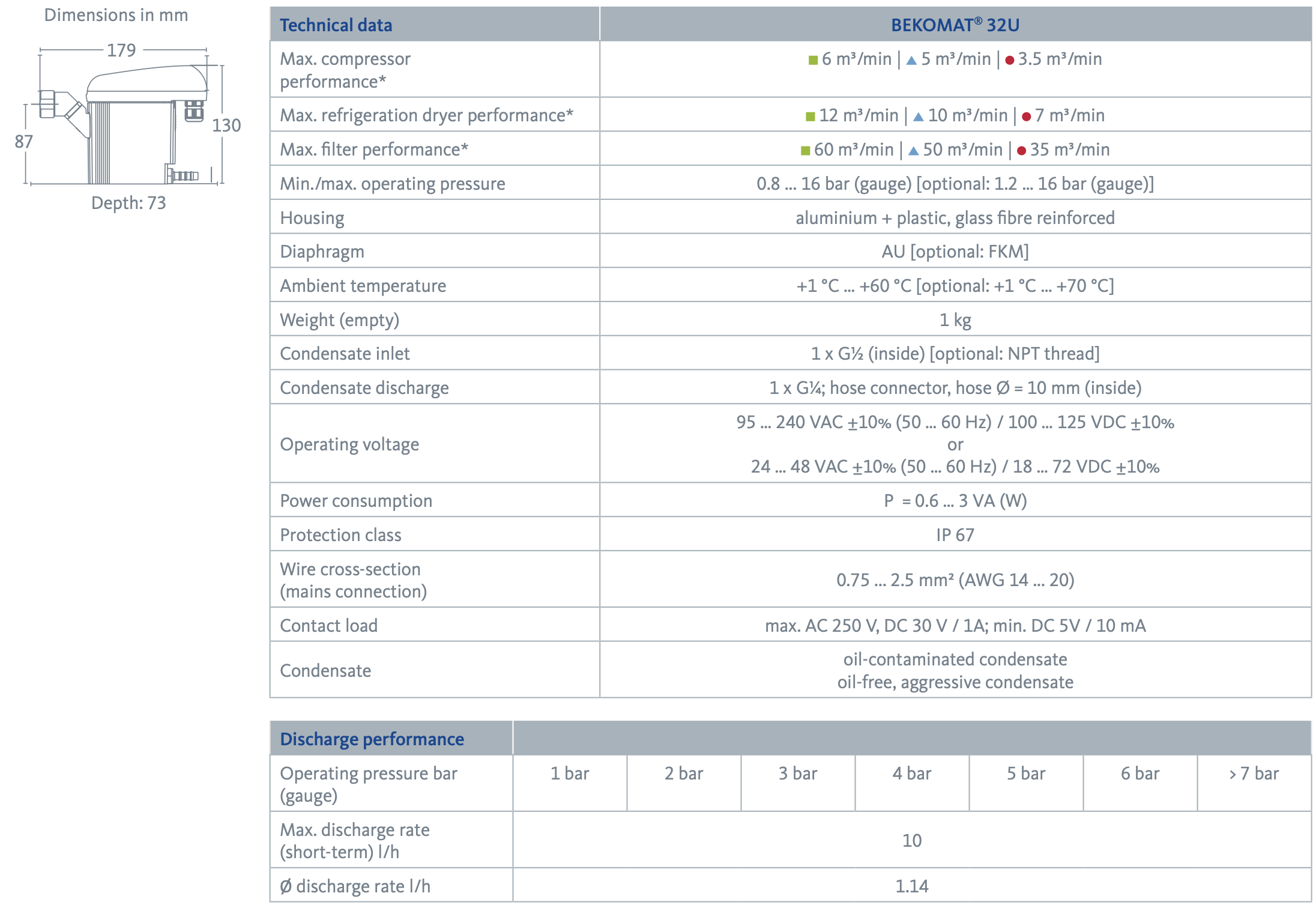

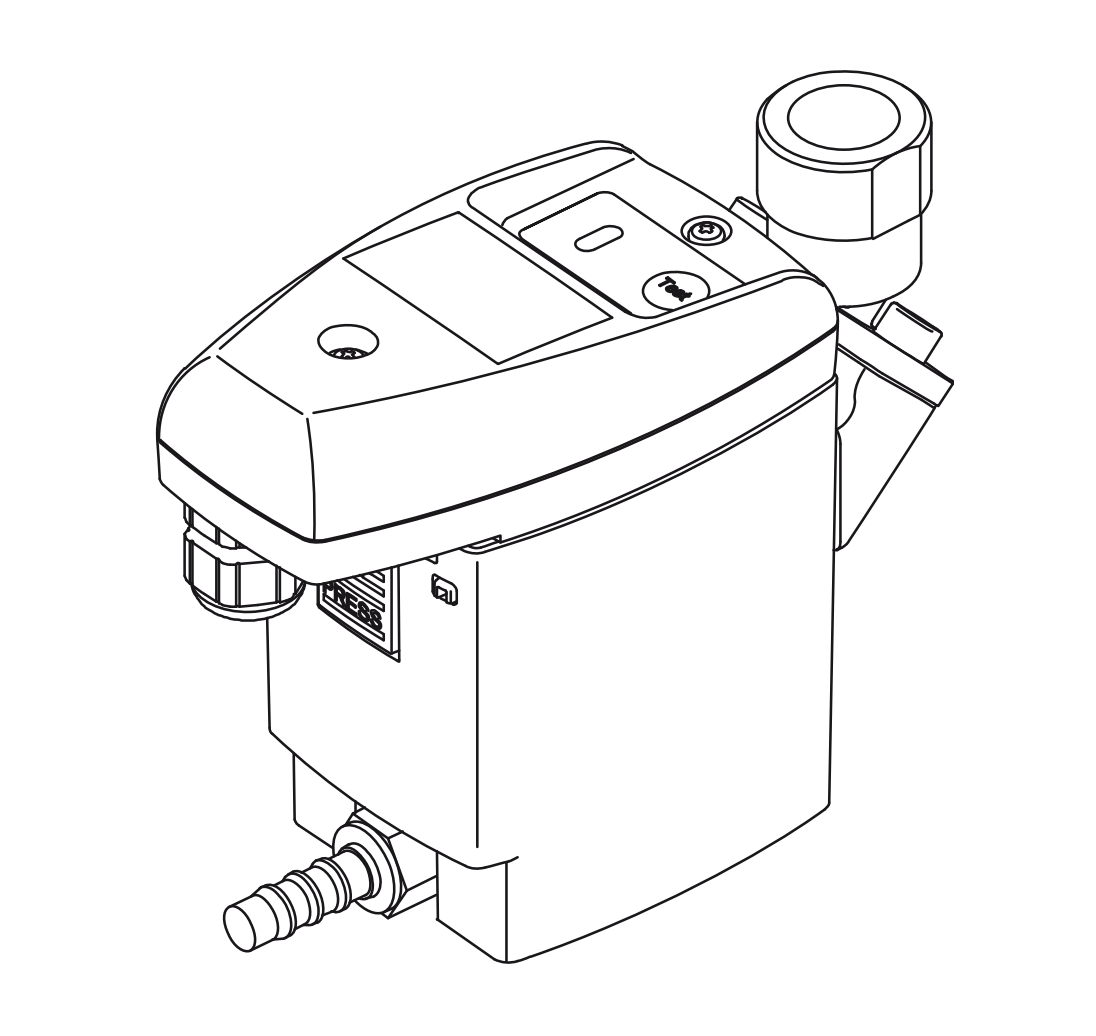

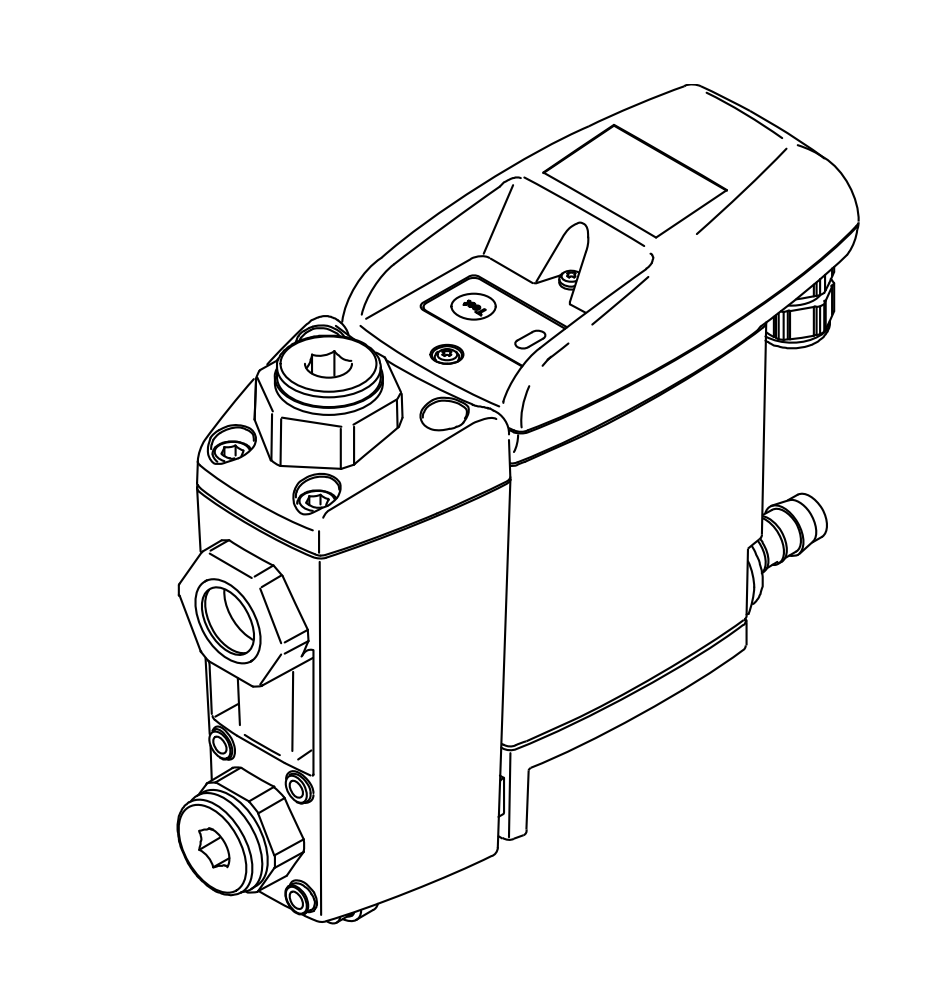

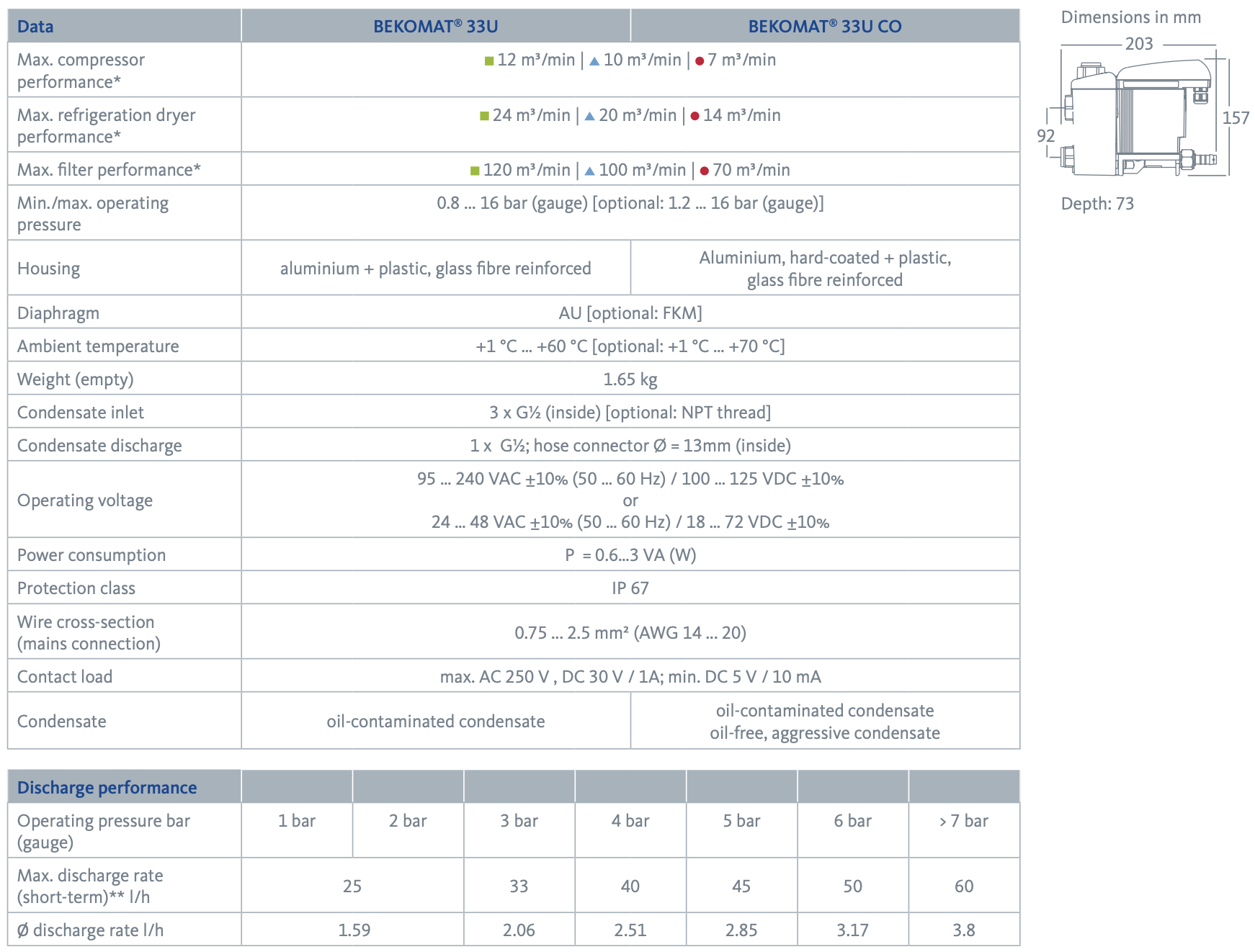

Bekomat® 31/33
The innovative design of the BEKOMAT 31U, 32U, 33U, and 33U CO series enables simplified operation, installation, and maintenance with minimal time required. The devices consist of up to three units combined with quick-release connectors. Control and sensor units are installed only once; for maintenance, only the service unit (including all wear and pressure parts) needs to be replaced. This robust condensate drain is suitable for both oil-lubricated and oil-free, aggressive condensates.
A service indicator provides timely information about upcoming maintenance and/or service unit replacement. All wear and pressure-loaded components can be accessed with one hand. No electrical wiring or assembly of seals and single components is required. The installation concept is especially user-friendly and time-saving: the device needs to be connected electrically only once. The robust housing is also waterproof according to IP67. BEKOMAT 31U | 32U allows easy connection to the compressed air system with a pressure adapter.
If the service unit of the BEKOMAT 33U is disconnected from the power supply and condensate collection reservoir, the supply tank remains permanently connected to the compressed air system. This saves time and effort during maintenance.
Bekomat® 31/33 Automatic Water Drain Device
Learn more about the Bekomat® 31/33 automatic water drain device.
Bekomat® 31/33
The Bekomat® 31/33 is a reliable and durable automatic drain device designed for high-capacity condensate discharge in compressed air systems. These models are engineered to handle large flow volumes and operate smoothly under harsh industrial conditions. Equipped with electronic level sensors, the Bekomat® 31/33 drains condensate only when necessary, providing energy savings. Its robust construction and modern technology deliver long-lasting performance.
• Large-Scale Compressors: Provides an effective solution for systems requiring high-volume condensate discharge.
• Industrial Dryers: Meets large capacity needs in moisture removal processes.
• Chemical and Petrochemical Industry: Ensures reliable condensate drainage under harsh conditions.
• Power Plants: An ideal choice for intensive compressed air systems.
• Metallurgy and Manufacturing Facilities: Offers high durability and efficiency in heavy industrial applications.
The Bekomat® 31/33 is specially developed for large flow capacities and demanding environmental requirements. Its robust performance, energy-saving features, and ease of maintenance enhance industrial operational efficiency and reduce costs.

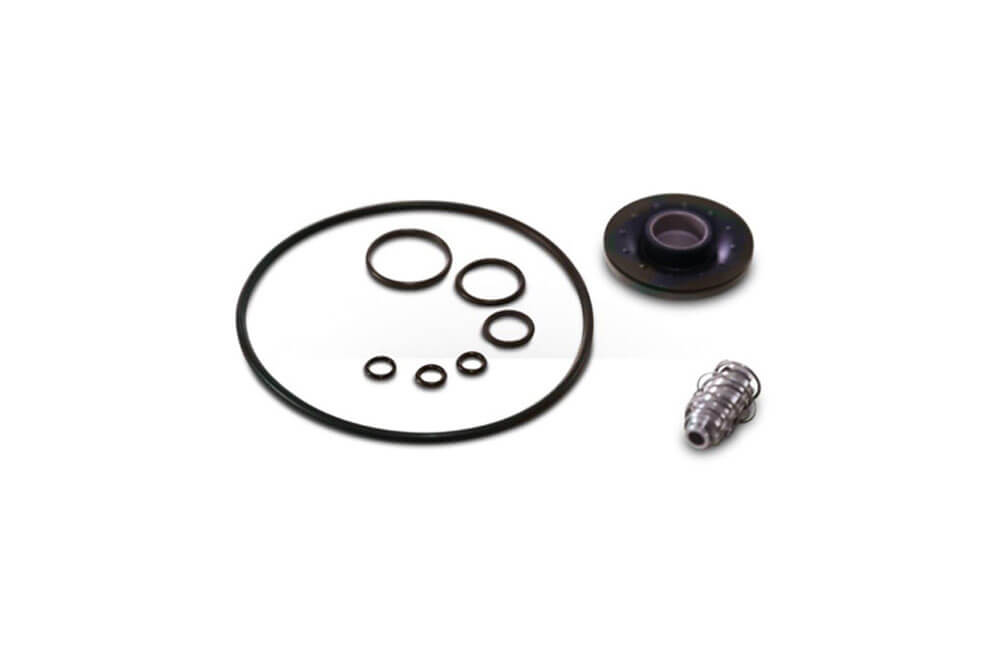

Bekomat® Maintenance Kit
BEKOMAT requires periodic servicing. Therefore, we offer a suitable wear parts kit. Additionally, we can provide an evaluation of your entire compressed air treatment system and assist you with optimization accordingly.
Bekomat® Automatic Water Drain Device Maintenance Kit
Learn more about the Bekomat® maintenance kit.
Bekomat® Maintenance Kit
The Bekomat® Maintenance Kit is a comprehensive maintenance solution designed to ensure the long-lasting and trouble-free operation of Bekomat® automatic drain devices. This kit includes all the spare parts and components required during routine maintenance procedures. Composed of original parts, the maintenance kits help maintain optimal device performance while enhancing the system's energy efficiency and reliability.
• Long Lifespan: Original spare parts enhance the durability of the device.
• Performance Protection: Essential for maintaining system efficiency and optimizing the drainage process.
• Easy Application: All components are provided together for quick and easy installation.
• Cost Efficiency: Regular maintenance reduces the risk of failure and ensures long-term cost savings.
• Compatibility: Kits are specially designed for different Bekomat® models.
