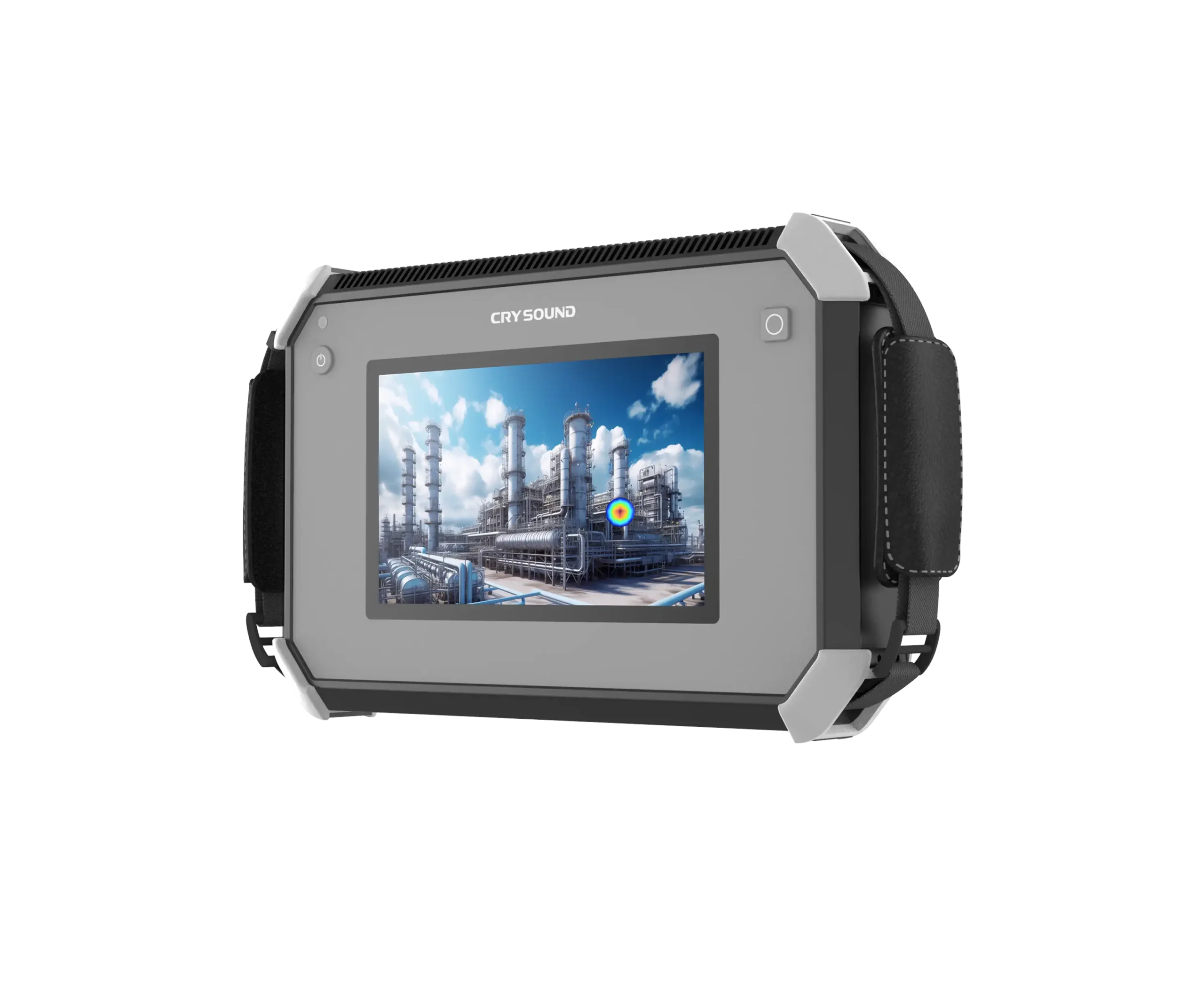

CRY2620 64-Microphone Industrial Acoustic Imaging Device
The CRY2620 Industrial Acoustic Imaging Device is designed to quickly and efficiently detect leaks in compressed air and gas systems. With its durable aluminum alloy body, it is built to withstand harsh and variable working conditions. The device provides a real-time acoustic image, significantly accelerating leak detection in pressurized or vacuum systems compared to traditional methods.
The CRY2620 offers ease of use with only two adjustable parameters (test frequency range and dynamic range), meeting most testing needs.
With its photo and video capture modes, it offers flexible data recording capabilities in the field. Thanks to its high-capacity and expandable TF card memory, test results can be quickly exported and reported.
The device helps businesses minimize losses and occupational safety risks caused by leaks in compressed air and gas systems.
High-Performance Microphone Array

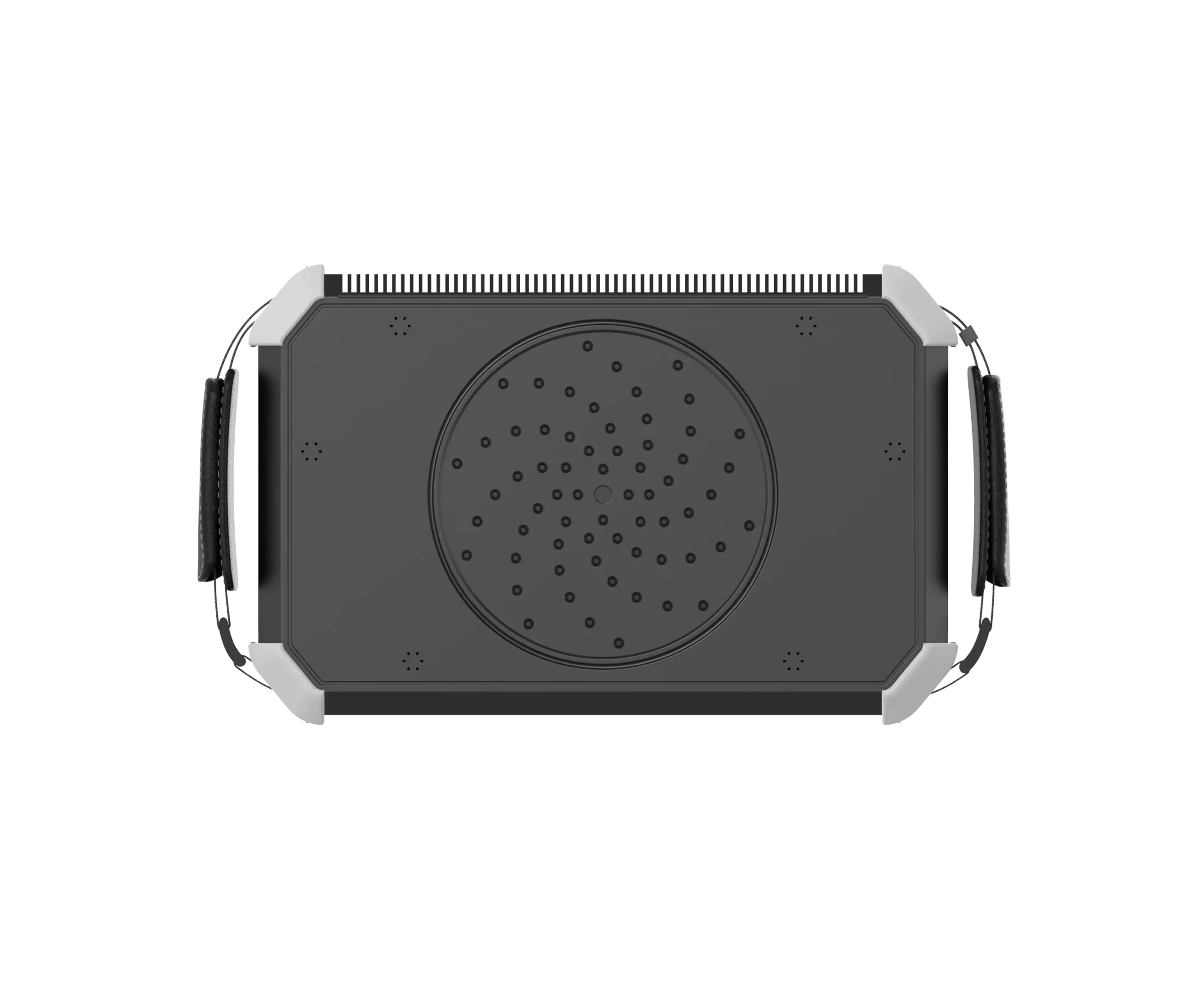

With its compact and powerful design, the CRY2620 utilizes an advanced 64-channel microphone array with a diameter of 12 cm (4.7 inches), capable of detecting leaks up to 70 meters away. By analyzing the time differences of sound waves detected by each microphone, it accurately determines the direction and distance of the sound source. Data processed through advanced algorithms is converted into a detailed acoustic image, visually highlighting leak points and critical areas. The compact array structure ensures high-resolution imaging while maintaining portability. This feature makes the CRY2620 an ideal solution for a wide range of industrial applications.
Gas/Vacuum Leak Detection and Leak Rate Calculation

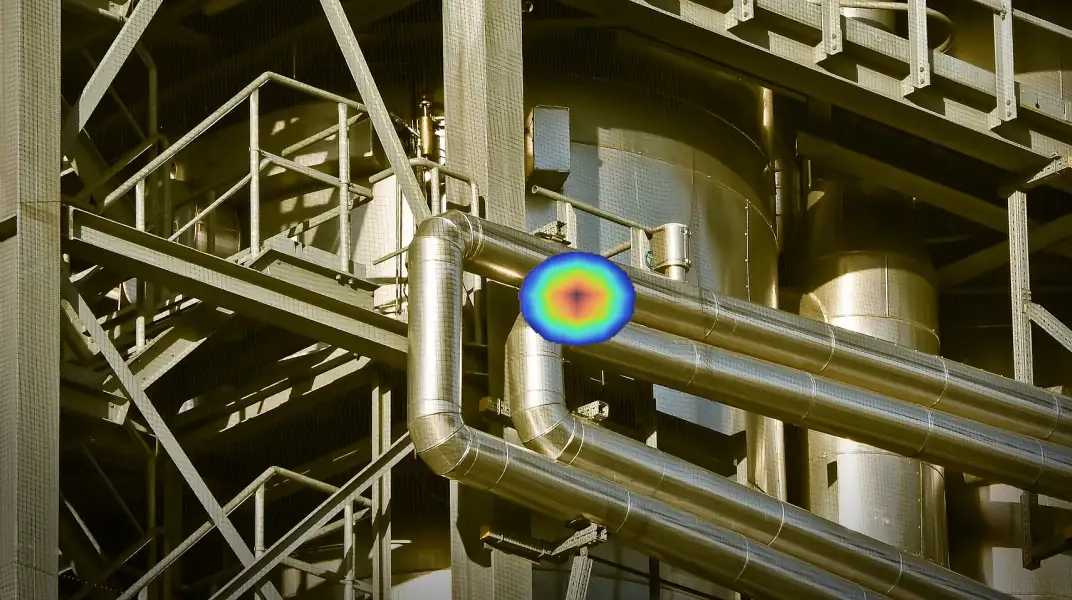

The CRY2620 is a high-performance device that offers precise leak detection and evaluation in compressed air and gas systems. With its advanced acoustic technology, it detects the ultrasonic sound generated by escaping gas to accurately identify the leak point. This precision significantly shortens inspection time and enhances workplace safety by reducing the need for manual checks. The device not only identifies the leak location but also calculates the leak rate, clearly revealing the economic impact of gas loss. This enables businesses to analyze potential financial losses and effectively plan prioritized interventions and maintenance. It easily detects and pinpoints leaks at ultrasonic frequencies beyond the range of human hearing.
Detects All Types of Gas Leaks
The CRY2620 is a versatile industrial solution developed for detecting all types of leaks, regardless of the gas type. Thanks to its advanced acoustic technology, it detects the ultrasonic sound waves generated by escaping gas, no matter its composition. This enables fast and accurate leak detection for a wide range of gases, including compressed air, natural gas, hydrogen, and oxygen. The device’s flexible structure allows for effective use at all stages of industrial operations, including production, processing, transportation, and storage. Its real-time visual detection feature enables operators to quickly locate leak points and take immediate action during both routine maintenance and emergency interventions.
“Beamforming” Technology for Eliminating Ambient Noise
The CRY2620 features a focusing capability that effectively eliminates the impact of ambient noise through advanced beamforming technology. This acoustic technology uses a sophisticated microphone array to precisely detect and amplify specific sound sources while suppressing background noise. By focusing on critical areas such as machinery or structural components, it enhances signal quality and measurement accuracy even in high-noise environments. This feature provides a significant advantage in industrial facilities where high background noise can mask acoustic signals related to equipment health and performance.
Durable Design for Harsh Industrial Environments
The CRY2620 is built from durable aluminum alloy and features an exceptionally robust structure that provides reliable performance under challenging field conditions. Thanks to its solid body design, the device maintains functionality and measurement accuracy even in tough industrial environments exposed to physical impacts. Whether used on factory floors, in outdoor applications, or during transport, the CRY2620’s protective structure absorbs shocks and ensures uninterrupted operation. This durability is critically important for long-term reliability and cost efficiency; especially in periodic inspection and fault detection applications, the device’s continuity guarantees accurate and consistent results.
IP54 Protection Rating
The CRY2620 features an IP54 protection rating, making it resistant to dust ingress and water splashes. This ensures safe operation in harsh environmental conditions. The IP54 standard guarantees protection against most solid particles and limited water exposure. In industrial facilities, outdoor areas, or other demanding applications, the CRY2620 maintains its high performance and reliability despite environmental factors. As a result, risks associated with field conditions are minimized, ensuring long-lasting usage.
TECHNICAL SPECIFICATIONS
Learn more about the Multi-Sensor (64) CRYSOUND - CRY2620.
| Acoustic Specifications | |
| Microphone Array | 64-channel MEMS microphone |
| Effective Test Frequency Range | 2kHz - 40kHz |
| Dynamic Range | 0.5dB - 12dB (user adjustable) |
| Test Sound Pressure Level Range | 28 - 120 dBA |
| Auto max/min dB Gain | User adjustable, minimum test bandwidth: 1kHz |
| Digital Resolution | 16 bit |
| Sound Imaging Field of View (FOV) | 62° |
| Sound Image Frame Rate | Minimum 25 FPS |
| Leak Detection Rate | 10m 5 bar → 2.4 ml/s 0.5m 5 bar → 1.2 ml/s |
| Detection Distance | 0.5m - 70m |
| Camera Specifications | |
| Camera Field of View (FOV) | 62° |
| Camera Focal Length | 3.04 mm fixed focus |
| Camera Resolution | 8 megapixels |
| Display Specifications | |
| Resolution | 1024 × 600 (614,400 pixels) |
| Size | 7 inches |
| Touch Screen | Capacitive touch screen |
| Brightness | Adjustable |
| Photo Notes | Up to 5 reference photo notes |
| Sound Source Imaging | Single or multiple source display |
| Standard Color Palettes | 3 options: Grayscale, Ironbow, Blue-Red |
| Playback Function | View photos and videos, add notes and tags |
| Storage | |
| Internal Storage | Approximately 8GB |
| External Storage | Minimum 64GB TF card, expandable up to 256GB |
| Data Recording Format | .jpg (Photo), .mp4 (Video), .wav (Audio recording) |
| Video Duration | Maximum 5 minutes |
| Digital Transfer | Via TF Card |
| Power Specifications | |
| Battery Capacity | 1× 6600mAh @ 7.2V + 1× external battery pack |
| Battery Operating Time | 4 + 6 hours total |
| Charger | USB Type-C, USB PD supported, 15W |
| Power Consumption | 15W (charging) / 29W (max) |
| Power Management | Sleep / Auto shutdown |
| Ports | |
| Audio Output | 3.5 mm headphone jack |
| USB | USB 3.0 Type-C (host port) |
| Operating Conditions | |
| Operating Temperature | -20°C ~ +50°C, 10% - 95% relative humidity (non-condensing) |
| Storage Temperature | -20°C ~ +60°C |
| Charging Temperature | 10°C ~ +45°C |
| General Specifications | |
| Protection Rating | IP54 |
| Dimensions | 272mm × 174mm × 42mm |
| Weight | 1.7 kg |
| Warranty Period | 2 years |
| Self-Diagnostic Function | Microphone array health test notification |
| Operating System | Linux |
